Upgrade your property with this Complete Sliding Gate Automation Package a strong, secure, and convenient solution for controlling access to your driveway.
This package includes a custom-built steel sliding gate, an ALL-O-MATIC SL-90 DC gate operator, a LiftMaster 850LM universal receiver, a LiftMaster single-button remote control, and a photo-eye safety system that detects vehicles in the gate’s path.
Every component is designed to work together, giving you smooth and reliable operation, enhanced safety, and easy access with the push of a button. It’s the perfect all-in-one package for homeowners who want long-lasting security, privacy, and convenience.
Specs:

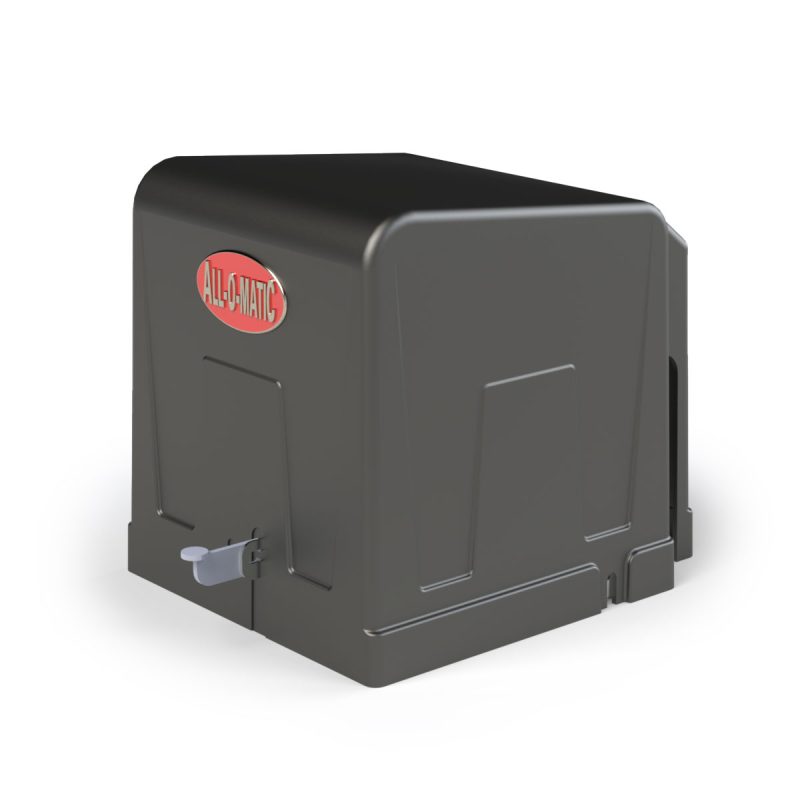

SL-90DC PRO
UL 325 2018 Compliant
Max Gate Weight 1,600 lbs.
Max Gate Length 50 feet
Warranty 7 year residential – 5 year commercial
Motor 24 VDC brushless – ½ HP motor
Gate Speed 12” per second
Power Options 115/230 VAC single phase and 24 VDC solar panel
Duty Cycle Continuous
Battery Back Up Integrated, with (2) 7Ah 12VDC batteries
Battery Back Up Capacity 150 cycles on a 1,000 lb. gate
Temperature Range -40 to 160°
Gearbox Ratio 20:1 with internal disconnect
Width X Length X Height 15.5” X 18.5” X 16”
Shipping Weight 95 lbs.
Emergency Release Mechanical foot pedal release
Belt Size 4L-230 (AX21)
Main Sprocket Size 41B22X7/8
Chain Size 41NP (20’ included)
Gearbox Sprocket N/A
Limit Shaft Sprocket 41B15X5/8
Breaker Requirement 20 amp dedicated
Gearbox Pulley 2 ½” with 5/8” bore
Motor Pulley 2” with 5/8” bore
