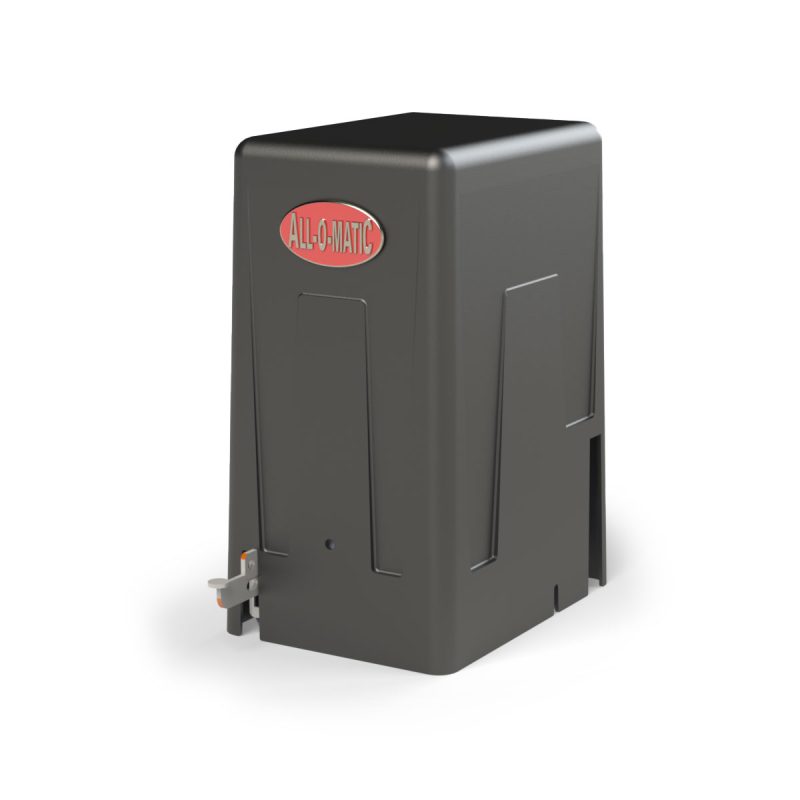

ALL-O-MATIC SL100 FP AC

Upgrade your property with a complete sliding gate automation package designed for security, convenience, and long lasting performance. This package includes a custom built steel sliding gate with wood infill, a heavy-duty All-O-Matic SL-100 gate operator with manual foot-pedal release, a safety photo-eye system for vehicle detection, a LiftMaster three-channel receiver, and a single-button remote control. Every component works together to provide smooth, reliable access to your driveway all in one professional-grade package.

Specs:

SL-100FP AC
UL 325 2018 Compliant
Max Gate Weight 1,000 lbs.
Max Gate Length 37 feet
Warranty 7 year residential – 5 year commercial
Motor ½ HP motor
Gate Speed 12” per second
Power Options 120 VAC
Duty Cycle Continuous
Battery Back Up N/A
Battery Back Up Capacity N/A
Temperature Range -40 to 160°
Gearbox Ratio Regular – 10:1
FP – 20:1 with internal disconnect
Width X Length X Height 12” X 17.5” X 23.5”
Shipping Weight 100 lbs.
Emergency Release Regular: Push open in event of a power failure
FP: Mechanical foot pedal release
Belt Size Regular: 4L-300 (AX28)
FP: 4L-260 (AX24)
Main Sprocket Size 41B22X7/8
Chain Size 41NP (20’ included)
Gearbox Sprocket N/A
Limit Shaft Sprocket Regular: N/A
FP: 41B15X5/8
Breaker Requirement 20 amp dedicated
Gearbox Pulley Regular: 5” with 5/8” bore
FP: 2 ½” with 5/8” bore
Motor Pulley 2” with 5/8” bore
